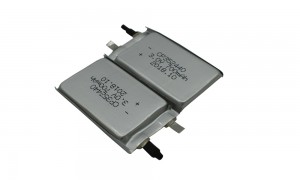

3V LiMnO2 Film Lithium Battery for Module 352440


  • Model Number: CP092142
  • Place of Origin: Guangdong, China (Mainland)
  • Type: Lithium battery
  • Nominal Voltage: 3.0v
  • Nominal Capactiy: 90mAh
  • Warranty: 10Years
  • Payment Term: Paypal.TT.Escrow.Western Union
  • Certification: UN38.3.MSDS,ROSH,KC,UL1642.BIS
  • Product Detail

    Product Tags

     3V LiMnO2 Film Lithium Battery for Module 352440

    Details

    Item Type

      3V LiMnO2 Film Lithium Battery for Module 352440

    Model

    CP352440

    Brand

    HRL or OEM

    Voltage

    3.0V

    Capacity

    650mah

    Dimension

    3.5mm*24mm*40mm

    Max Discharge Current

    Continuous:200.0mA     Pulse:500mA

    Weight

    6g

    Operating Temperature

    -20~+60°C

    Rechargeable

    No

    Certification

    CE REAH SGS

    Application

    Water meter,Gas meter, Ammeter

    Sample Lead time

    As usual 7-10 working days

    Production Lead time

    15-20 working days for available designs,Customized: 25~30 days

    Applacations

                               ⇒AMR utility metering(Electricity, Gas, Water, Heat meter),⇒Alarms and security wireless devices,⇒Mobile asset tracking

    ⇒GPS Tracking, RFID,⇒Emergency location transmitters beacons(ELTs, EPIRBs)

     Product advantages

    1. High-voltage(3.6V)

    2. The specific energy(500wh/kg) and energy density(1000wh/dm3) are very high

    3. The discharge voltage is very stable

    4. Wide working temperature range(-55°C~85°C)

    5. Self-discharge is very low, the shelf life can be more than 10 years


    LI-MnO2 BATTERIES Modles

    锂锰HRL CELL MODLES

    Basic characteristics and principle of lithium battery

    The high-rate lithium polymer lithium battery uses a special structural design, uses a lamination process, and special optimized ratio of the electrolyte. Unlike the polymer lithium battery  of the mobile phone,

    the high-rate lithium polymer lithium battery has low internal resistance and discharge. High efficiency, large current discharge, fast charging, etc.; can be 3-5C fast charging, 80% of full charge in 12 minutes (matching special fast charger)

    Packaging & Delivery

    Pacaging Detail: Carton packing,200pice per box, 10 boxes per Carton, Customer customized service accepted
    Delivery Detail: Sameple 7-15 days, Quantity order 25-30days

    Q:Are you manufactory?

    A:Yes, we are professional mammnufacturer for polymer batteries since 2008

    Q:What is MOQ for this product in your caompany?

    A:MOQ 100pcs.

    Q:When you ship my order?

    A:Normally 35-45days affter payment confirmed, but it can be negotiated based on order qty and production schedule.

    Q:Can I get the pre-production sample?

    A:Yes, we will send you sample for approval first, affter you confirm, then we will start mass production order.

    Q:Can batterise size custome available?

    A:Yes, Please send ud the capacity and max battery size, so that we can search our model for you.

    Q:How about the quality grantee period?

    A:One Year.

    Q:Hoew can you guarantee the production quality?

    A:We have moren than 10 years experience ofpolymer battery production. Our production quality follow strixt control procedd. We have 3 times inspection for finished product before package. All of our battrties are 100% tested and insoeted before shibment.

     HRL specializes in the development, production and sales of custom lithium batteries.If you have any questions, pls feel free to contact us.
