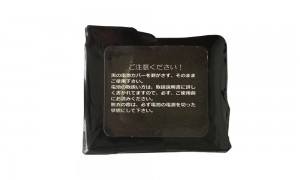

High power rechargeable Li-Ion batteries 7.4V / 1.8 Ah / 13.32Wh for Heated Gloves


  • Model Number: HRL103450
  • Place of Origin: Guangdong, China (Mainland)
  • Type: ithium polymer battery
  • Nominal Voltage: 7.4v
  • Nominal Capactiy: 1800mAh
  • weight: 100g
  • Warranty: 12Months
  • Payment Term: Paypal.TT.Escrow.Western Union
  • Certification: UN38.3.MSDS,ROSH,KC,UL1642.BIS
  • Product Detail

    Product Tags

    What is the details of your batteries?

    details

    NO Item Characteristics
    1 Nominal Capacity 1800Ah
    2 Nominal Voltage 7.4V
    3 Initial Impedance ≤80mΩ(23±2°C)
    4 Limited Charge Voltage 8.4V
    5 Discharge Cut-off Voltage 6.0V
    6 Charge Current Standard Charge: 0.2C
     Discharge Current Rapid Charge: 0.5C
    7 Standard Charge 0.2C 5A CC(constant current) charge to 8.4V, then CV(constant voltage) charge till charge current decline to 0.02C.
    8 Standard Discharge 0.2 C5A discharge to the Discharge Cut-off Voltage.
    9 End-of-Charge Current 0.02 C5A
    10 Max Continuous Charge Current 0.5C
    11 Max Continuous Discharge Current 1C
    12 Working Temperature Range Charge : 0 ~ 45°C
    Discharge : – 20 ~ 60°C
    13 Storage Temperature Range -20 ~ 60°C≤1month
    -20 ~ 45°C≤3months
    -20 ~ 30°C≤12months
    14 Operating and Storage Humidity Range 45~75% RH
    15 dimension
    20*34*50mm

    Applacations

    Heated Gloves  ,Bootheaters,Heated Clothing,Heated product

    air purifier appcation

    Product advantages

    1, Excellent security, no memory effect, stable performance,

    2, High energy density, high capacity, low self-discharge

    3, Long cycle life of more than 500 times

    4, CE / ROHS/ UL1642 / MSDS / UN38.3 / IEC standard/UN3.83/KC

    5, Capacity and size could be customerized

    Lithium electronic battery charging and discharging principle structure diagram

    battery charge details

    Basic characteristics and principle of lithium battery

    The high-rate lithium polymer lithium battery uses a special structural design, uses a lamination process, and special optimized ratio of the electrolyte. Unlike the polymer lithium battery  of the mobile phone,

    the high-rate lithium polymer lithium battery has low internal resistance and discharge. High efficiency, large current discharge, fast charging, etc.; can be 3-5C fast charging, 80% of full charge in 12 minutes (matching special fast charger)

    Factory Show

      微信图片_201903081532261 微信图片_201903081532262 微信图片_201903081532264 微信图片_201903081532263 微信图片_201903081532265微信图片_201903081532266 微信图片_201903081532267  MGL_7547

    Packaging & Delivery

    Pacaging Detail: Carton packing,200pice per box, 10 boxes per Carton, Customer customized service accepted
    Delivery Detail: Sameple 7-15 days, Quantity order 25-30days
    Packaging and Shapping
    10

    Q:Are you manufactory?

    A:Yes, we are professional mammnufacturer for polymer batteries since 2008

    Q:What is MOQ for this product in your caompany?

    A:MOQ 1000pcs.

    Q:When you ship my order?

    A:Normally 35-45days affter payment confirmed, but it can be negotiated based on order qty and production schedule.

    Q:Can I get the pre-production sample?

    A:Yes, we will send you sample for approval first, affter you confirm, then we will start mass production order.

    Q:Can batterise size custome available?

    A:Yes, Please send ud the capacity and max battery size, so that we can search our model for you.

    Q:How about the quality grantee period?

    A:One Year.

    Q:Hoew can you guarantee the production quality?

    A:We have moren than 10 years experience ofpolymer battery production. Our production quality follow strixt control procedd. We have 3 times inspection for finished product before package. All of our battrties are 100% tested and insoeted before shibment.

     HRL specializes in the development, production and sales of custom lithium batteries.If you have any questions, pls feel free to contact us.
